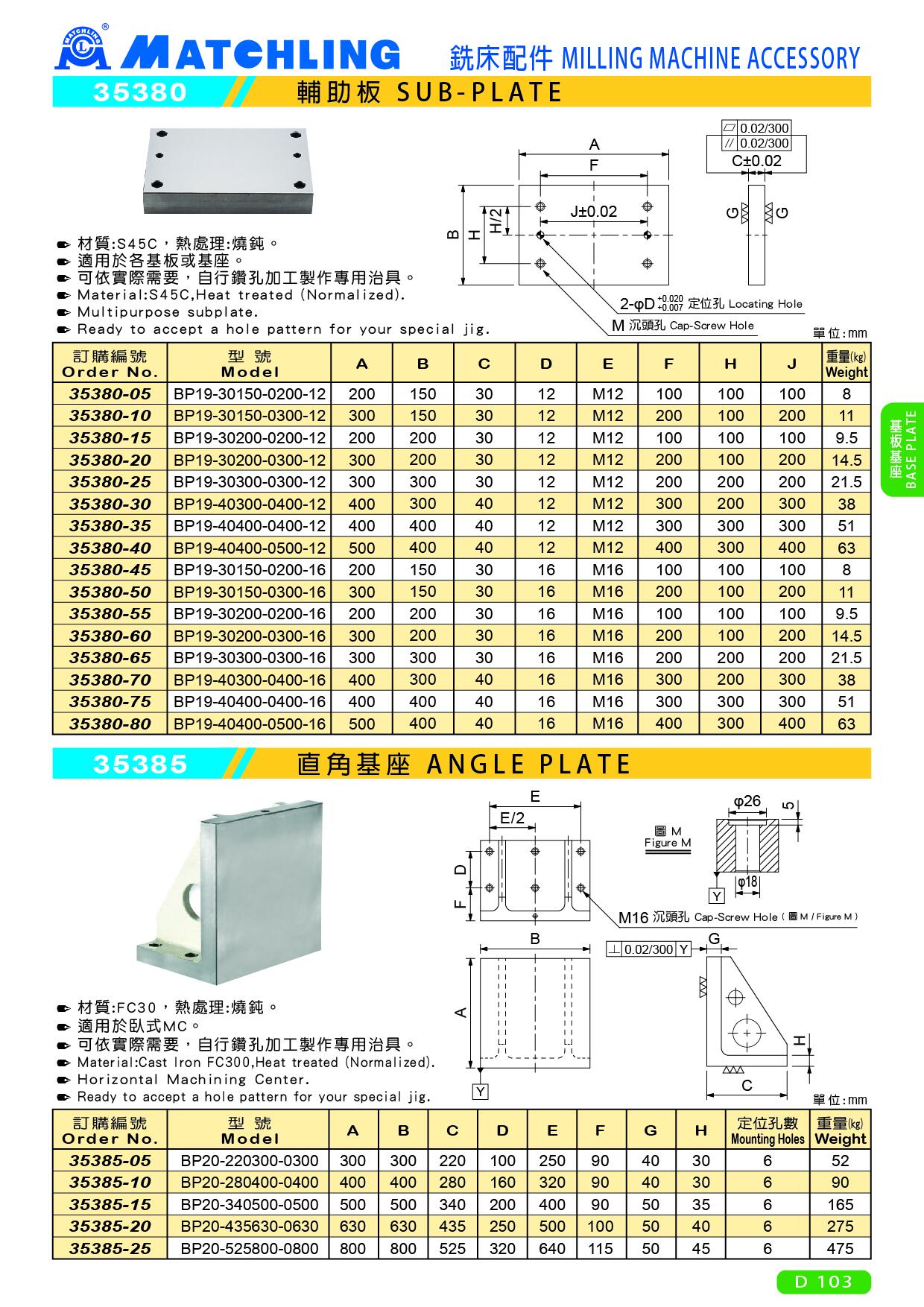

35380 輔助板
● 材質:S45C，熱處理:燒鈍。
● 適用於各基板或基座。
● 可依實際需要，自行鑽孔加工製作專用治具。
單位：mm
| 訂購編號 | 型號 | A | B | C | D | E | F | H | J | 重量 (kg) |
| 35380-05 | BP19-30150-0200-12 | 200 | 150 | 30 | 12 | M12 | 100 | 100 | 100 | 8 |
| 35380-10 | BP19-30150-0300-12 | 300 | 150 | 30 | 12 | M12 | 200 | 100 | 200 | 11 |
| 35380-15 | BP19-30200-0200-12 | 200 | 200 | 30 | 12 | M12 | 100 | 100 | 100 | 9.5 |
| 35380-20 | BP19-30200-0300-12 | 300 | 200 | 30 | 12 | M12 | 200 | 100 | 200 | 14.5 |
| 35380-25 | BP19-30300-0300-12 | 300 | 300 | 30 | 12 | M12 | 200 | 200 | 200 | 21.5 |
| 35380-30 | BP19-40300-0400-12 | 400 | 300 | 40 | 12 | M12 | 300 | 200 | 300 | 38 |
| 35380-35 | BP19-40400-0400-12 | 400 | 400 | 40 | 12 | M12 | 300 | 300 | 300 | 51 |
| 35380-40 | BP19-40400-0500-12 | 500 | 400 | 40 | 12 | M12 | 400 | 300 | 400 | 63 |
| 35380-45 | BP19-30150-0200-16 | 200 | 150 | 30 | 16 | M16 | 100 | 100 | 100 | 8 |
| 35380-50 | BP19-30150-0300-16 | 300 | 150 | 30 | 16 | M16 | 200 | 100 | 200 | 11 |
| 35380-55 | BP19-30200-0200-16 | 200 | 200 | 30 | 16 | M16 | 100 | 100 | 100 | 9.5 |
| 35380-60 | BP19-30200-0300-16 | 300 | 200 | 30 | 16 | M16 | 200 | 100 | 200 | 14.5 |
| 35380-65 | BP19-30300-0300-16 | 300 | 300 | 30 | 16 | M16 | 200 | 200 | 200 | 21.5 |
| 35380-70 | BP19-40300-0400-16 | 400 | 300 | 40 | 16 | M16 | 300 | 200 | 300 | 38 |
| 35380-75 | BP19-40400-0400-16 | 400 | 400 | 40 | 16 | M16 | 300 | 300 | 300 | 51 |
| 35380-80 | BP19-40400-0500-16 | 500 | 400 | 40 | 16 | M16 | 400 | 300 | 400 | 63 |
