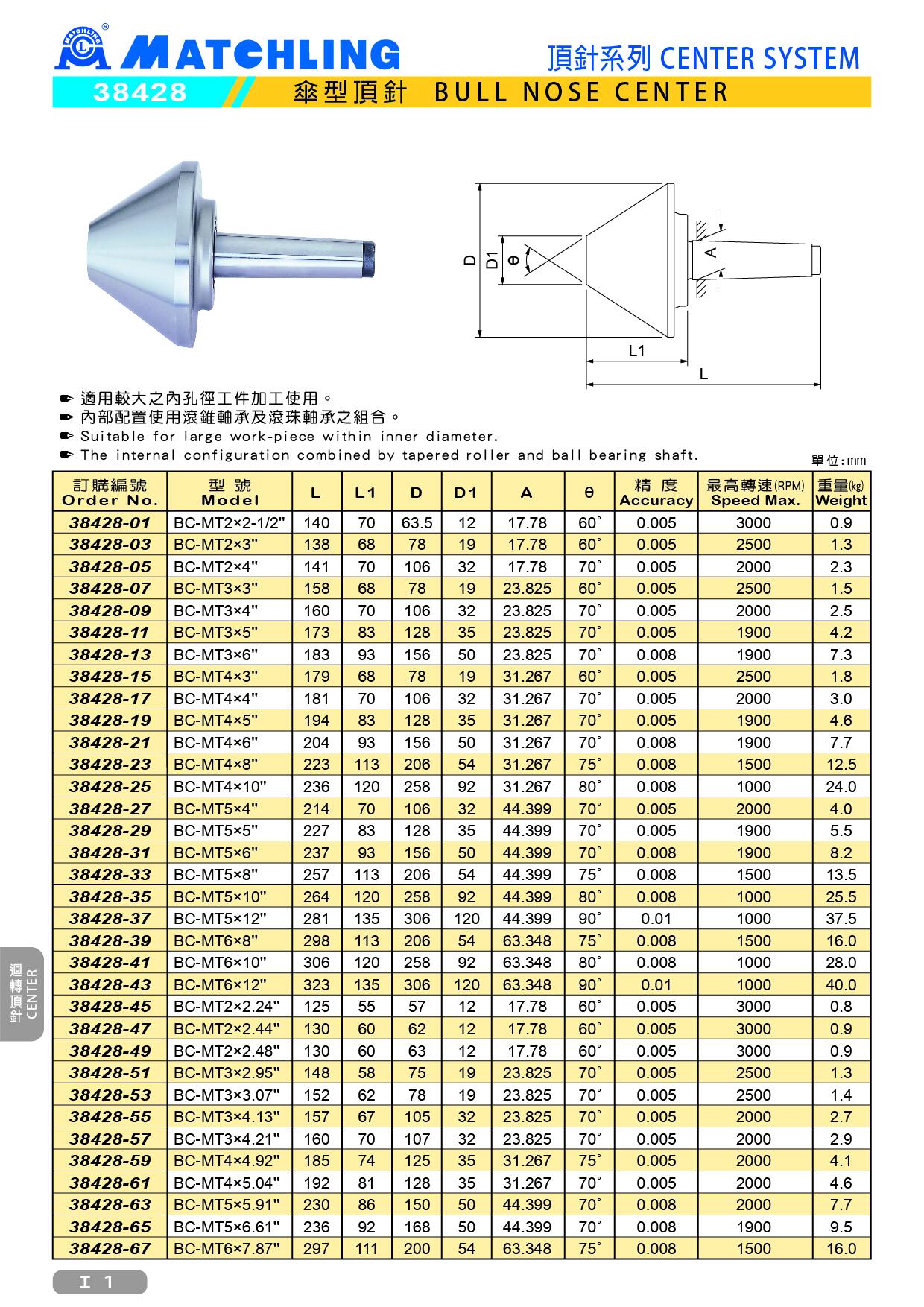

38428 傘型頂針
● 適用較大之內孔徑工件加工使用。
● 內部配置使用滾錐軸承及滾珠軸承之組合。
單位：mm
| 訂購編號 | 型號 | L | L1 | D | D1 | A | θ | 精度 | 最高轉速 (RPM) | 重量 (kg) |
| 38428-01 | BC-MT2x2-1/2" | 128 | 58 | 63.5 | 12 | 17.78 | 60° | 0.005 | 3000 | 0.9 |
| 38428-03 | BC-MT2x3" | 138 | 68 | 78 | 19 | 17.78 | 60° | 0.005 | 2500 | 1.3 |
| 38428-05 | BC-MT2x4" | 141 | 70 | 106 | 32 | 17.78 | 70° | 0.005 | 2000 | 2.3 |
| 38428-07 | BC-MT3x3" | 158 | 68 | 78 | 19 | 23.825 | 60° | 0.005 | 2500 | 1.5 |
| 38428-09 | BC-MT3x4" | 160 | 70 | 106 | 32 | 23.825 | 70° | 0.005 | 2000 | 2.5 |
| 38428-11 | BC-MT3x5" | 173 | 83 | 128 | 35 | 23.825 | 70° | 0.005 | 1900 | 4.2 |
| 38428-13 | BC-MT3x6" | 183 | 93 | 156 | 50 | 23.825 | 70° | 0.008 | 1900 | 7.3 |
| 38428-15 | BC-MT4x3" | 179 | 68 | 78 | 19 | 31.267 | 60° | 0.005 | 2500 | 1.8 |
| 38428-17 | BC-MT4x4" | 181 | 70 | 106 | 32 | 31.267 | 70° | 0.005 | 2000 | 3.0 |
| 38428-19 | BC-MT4x5" | 194 | 83 | 128 | 35 | 31.267 | 70° | 0.005 | 1900 | 4.6 |
| 38428-21 | BC-MT4x6" | 204 | 93 | 156 | 50 | 31.267 | 70° | 0.008 | 1900 | 7.7 |
| 38428-23 | BC-MT4x8" | 223 | 113 | 206 | 54 | 31.267 | 75° | 0.008 | 1500 | 12.5 |
| 38428-25 | BC-MT4x10" | 236 | 120 | 258 | 92 | 31.267 | 80° | 0.008 | 1000 | 24.0 |
| 38428-27 | BC-MT5x4" | 214 | 70 | 106 | 32 | 44.399 | 70° | 0.005 | 2000 | 4.0 |
| 38428-29 | BC-MT5x5" | 227 | 83 | 128 | 35 | 44.399 | 70° | 0.005 | 1900 | 5.5 |
| 38428-31 | BC-MT5x6" | 237 | 93 | 156 | 50 | 44.399 | 70° | 0.008 | 1900 | 8.2 |
| 38428-33 | BC-MT5x8" | 257 | 113 | 206 | 54 | 44.399 | 75° | 0.008 | 1500 | 13.5 |
| 38428-35 | BC-MT5x10" | 264 | 120 | 258 | 92 | 44.399 | 80° | 0.008 | 1000 | 25.5 |
| 38428-37 | BC-MT5x12" | 281 | 135 | 306 | 120 | 44.399 | 90° | 0.01 | 1000 | 37.5 |
| 38428-39 | BC-MT6x8" | 298 | 113 | 206 | 54 | 63.348 | 75° | 0.008 | 1500 | 16.0 |
| 38428-41 | BC-MT6x10" | 306 | 120 | 258 | 92 | 63.348 | 80° | 0.008 | 1000 | 28.0 |
| 38428-43 | BC-MT6x12" | 323 | 135 | 306 | 120 | 63.348 | 90* | 0.01 | 1000 | 40.0 |
| 38428-45 | BC-MT2x2.24" | 125 | 55 | 57 | 12 | 17.78 | 60° | 0.005 | 3000 | 0.8 |
| 38428-47 | BC-MT2x2.44" | 130 | 60 | 62 | 12 | 17.78 | 60° | 0.005 | 3000 | 0.9 |
| 38428-49 | BC-MT2x2.48" | 130 | 60 | 63 | 12 | 17.78 | 60° | 0.005 | 3000 | 0.9 |
| 38428-51 | BC-MT3x2.95" | 148 | 58 | 75 | 19 | 23.825 | 70° | 0.005 | 2500 | 1.3 |
| 38428-53 | BC-MT3x3.07" | 152 | 62 | 78 | 19 | 23.825 | 70° | 0.005 | 2500 | 1.4 |
| 38428-55 | BC-MT3x4.13" | 157 | 67 | 105 | 32 | 23.825 | 70° | 0.005 | 2000 | 2.7 |
| 38428-57 | BC-MT3x4.21” | 160 | 70 | 107 | 32 | 23.825 | 70° | 0.005 | 2000 | 2.9 |
| 38428-59 | BC-MT4x4.92" | 185 | 74 | 125 | 35 | 31.267 | 75° | 0.005 | 2000 | 4.1 |
| 38428-61 | BC-MT4x5.04“ | 192 | 81 | 128 | 35 | 31.267 | 70° | 0.005 | 2000 | 4.6 |
| 38428-63 | BC-MT5x5.91" | 230 | 86 | 150 | 50 | 44.399 | 70° | 0.008 | 2000 | 7.7 |
| 38428-65 | BC-MT5x6.61" | 236 | 92 | 168 | 50 | 44.399 | 70° | 0.008 | 1900 | 9.5 |
| 38428-67 | BC-MT6x7.87" | 297 | 111 | 200 | 54 | 63.348 | 75° | 0.008 | 1500 | 16.0 |
