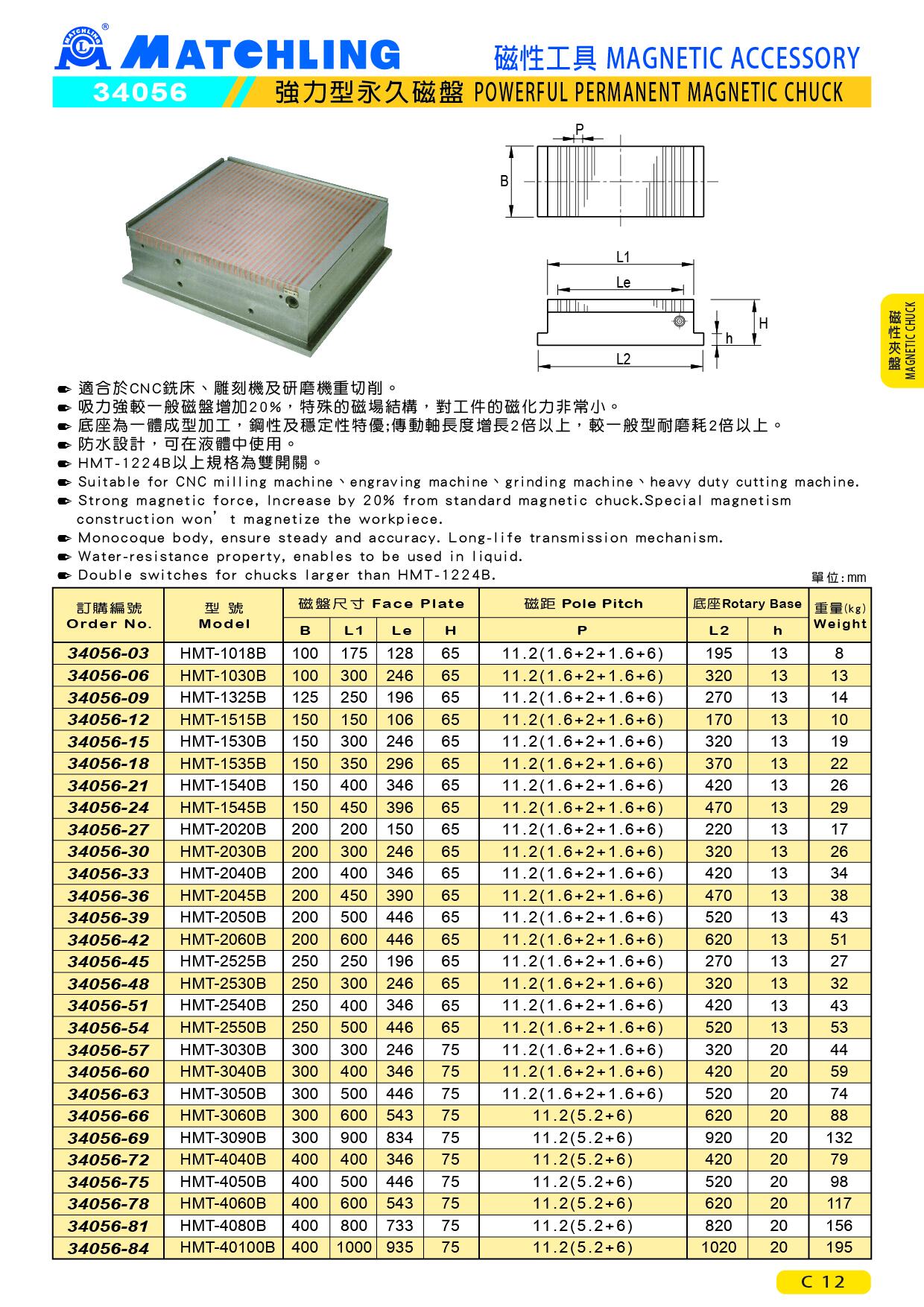

34056 強力型永久磁盤
● 適合於CNC銑床、雕刻機及研磨機重切削。
● 吸力強較一般磁盤增加20%，特殊的磁場結構，對工件的磁化力非常小。
● 底座為一體成型加工，鋼性及穩定性特優;傳動軸長度增長2倍以上，較一般型耐磨耗2倍以上。
● 防水設計，可在液體中使用。
● HMT-1325B以上規格為雙開關。
單位：mm
| 訂購編號 | 型號 | 磁盤尺寸 | 磁距 | 底座 | 重量 (kg) | ||||
| B | L1 | Le | H | P | L2 | h | |||
| 34056-03 | HMT-1018B | 100 | 175 | 128 | 65 | 11.2(1.6 + 2 + 1.6 + 6) | 195 | 13 | 8 |
| 34056-06 | HMT-1030B | 100 | 300 | 246 | 65 | 11.2(1.6 + 2 + 1.6 + 6) | 320 | 13 | 13 |
| 34056-09 | HMT-1325B | 125 | 250 | 196 | 65 | 11.2(1.6 + 2 + 1.6 + 6) | 270 | 13 | 14 |
| 34056-12 | HMT-1515B | 150 | 150 | 26 | 65 | 11.2(1.6 + 2 + 1.6 + 6) | 170 | 13 | 10 |
| 34056-15 | HMT-1530B | 150 | 300 | 246 | 65 | 11.2(1.6 + 2 + 1.6 + 6) | 320 | 13 | 19 |
| 34056-18 | HMT-1535B | 150 | 350 | 296 | 65 | 11.2(1.6 + 2 + 1.6 + 6) | 370 | 13 | 22 |
| 34056-21 | HMT-1540B | 150 | 400 | 346 | 65 | 11.2(1.6 + 2 + 1.6 + 6) | 420 | 13 | 26 |
| 34056-24 | HMT-1545B | 150 | 450 | 396 | 65 | 11.2(1.6 + 2 + 1.6 + 6) | 470 | 13 | 29 |
| 34056-27 | HMT-2020B | 200 | 200 | 150 | 65 | 11.2(1.6 + 2 + 1.6 + 6) | 220 | 13 | 17 |
| 34056-30 | HMT-2030B | 200 | 300 | 246 | 65 | 11.2(1.6 + 2 + 1.6 + 6) | 320 | 13 | 26 |
| 34056-33 | HMT-2040B | 200 | 400 | 346 | 65 | 11.2(1.6 + 2 + 1.6 + 6) | 420 | 13 | 34 |
| 34056-36 | HMT-2045B | 200 | 450 | 390 | 65 | 11.2(1.6 + 2 + 1.6 + 6) | 470 | 13 | 38 |
| 34056-39 | HMT-2050B | 200 | 500 | 446 | 65 | 11.2(1.6 + 2 + 1.6 + 6) | 520 | 13 | 43 |
| 34056-42 | HMT-2060B | 200 | 600 | 446 | 65 | 11.2(1.6 + 2 + 1.6 + 6) | 620 | 13 | 51 |
| 34056-45 | HMT-2525B | 250 | 250 | 196 | 65 | 11.2(1.6 + 2 + 1.6 + 6) | 270 | 13 | 27 |
| 34056-48 | HMT-2530B | 250 | 300 | 246 | 65 | 11.2(1.6 + 2 + 1.6 + 6) | 320 | 13 | 32 |
| 34056-51 | HMT-2540B | 250 | 400 | 346 | 65 | 11.2(1.6 + 2 + 1.6 + 6) | 420 | 13 | 43 |
| 34056-54 | HMT-2550B | 250 | 500 | 446 | 65 | 11.2(1.6 + 2 + 1.6 + 6) | 520 | 13 | 53 |
| 34056-57 | HMT-3030B | 300 | 300 | 246 | 75 | 11.2(1.6 + 2 + 1.6 + 6) | 320 | 20 | 44 |
| 34056-60 | HMT-3040B | 300 | 400 | 346 | 75 | 11.2(1.6 + 2 + 1.6 + 6) | 420 | 20 | 59 |
| 34056-63 | HMT-3050B | 300 | 500 | 446 | 75 | 11.2(1.6 + 2 + 1.6 + 6) | 520 | 20 | 74 |
| 34056-66 | HMT-3060B | 300 | 600 | 543 | 75 | 11.2(1.6 + 2 + 1.6 + 6) | 620 | 20 | 88 |
| 34056-69 | HMT-3090B | 300 | 900 | 834 | 75 | 11.2(1.6 + 2 + 1.6 + 6) | 920 | 20 | 132 |
| 34056-72 | HMT-4040B | 400 | 400 | 346 | 75 | 11.2(1.6 + 2 + 1.6 + 6) | 420 | 20 | 79 |
| 34056-75 | HMT-4050B | 400 | 500 | 446 | 75 | 11.2(1.6 + 2 + 1.6 + 6) | 520 | 20 | 98 |
| 34056-78 | HMT-4060B | 400 | 600 | 543 | 75 | 11.2(1.6 + 2 + 1.6 + 6) | 620 | 20 | 117 |
| 34056-81 | HMT-4080B | 400 | 800 | 755.6 | 75 | 11.2(1.6 + 2 + 1.6 + 6) | 820 | 20 | 156 |
| 34056-84 | HMT-40100B | 400 | 1000 | 935 | 75 | 11.2(1.6 + 2 + 1.6 + 6) | 1020 | 20 | 195 |
