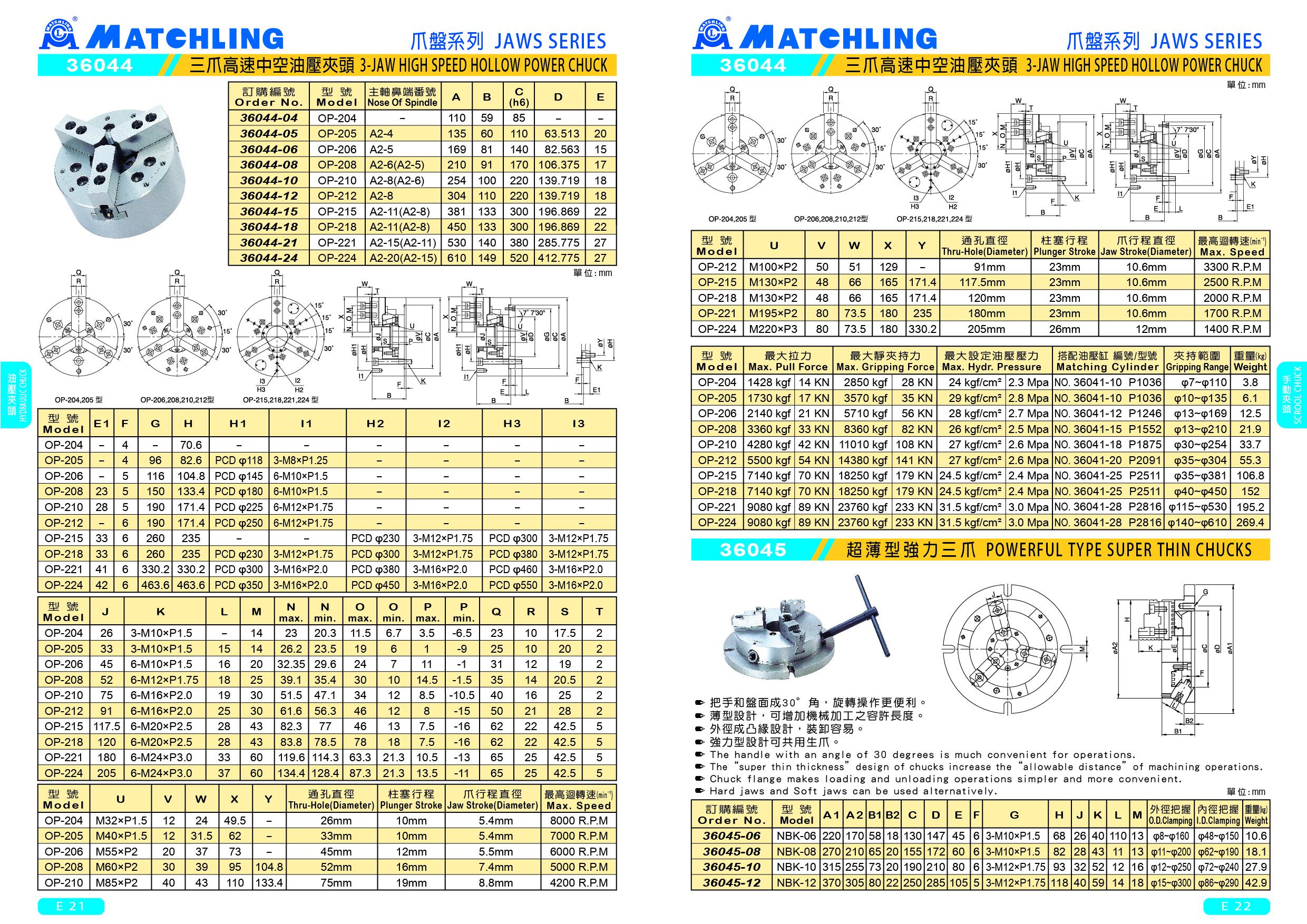

36044 三爪高速中空油壓夾頭
單位：mm
| 訂購編號 | 型號 | 主軸鼻端番號 | A | B | C (h6) | D | E |
| 36044-04 | OP-204 | - | 110 | 59 | 85 | - | - |
| 36044-05 | OP-205 | A2-4 | 135 | 60 | 110 | 63.513 | 20 |
| 36044-06 | OP-206 | A2-5 | 169 | 81 | 140 | 82.563 | 15 |
| 36044-08 | OP-208 | A2-6(A2-5) | 210 | 91 | 170 | 106.375 | 17 |
| 36044-10 | OP-210 | A2-8(A2-6) | 254 | 100 | 220 | 139.719 | 18 |
| 36044-42 | OP-212 | A2-8 | 304 | 110 | 220 | 139.719 | 18 |
| 36044-45 | OP-215 | A2-11(A2-8) | 381 | 133 | 300 | 196.869 | 22 |
| 36044-48 | OP-218 | A2-11(A2-8) | 450 | 133 | 300 | 196.869 | 22 |
| 36044-21 | OP-221 | A2-15(A2-11) | 530 | 140 | 380 | 285.775 | 27 |
| 36044-24 | OP-224 | A2-20(A2-15) | 610 | 149 | 520 | 412.775 | 27 |
| 型號 | E1 | F | G | H | H1 | 11 | H2 | I2 | H3 | I3 |
| OP-204 | - | 4 | - | 70.6 | - | - | - | - | - | - |
| OP-205 | - | 4 | 96 | 82.6 | PCDφ118 | 3-M8xP1.25 | - | - | - | - |
| OP-206 | - | 5 | 116 | 104.8 | PCDφ145 | 6-M10xP1.5 | - | - | - | - |
| OP-208 | 23 | 5 | 150 | 133.4 | PCDφ180 | 6-M10xP1.5 | - | - | - | - |
| OP-210 | 28 | 5 | 190 | 171.4 | PCDφ225 | 6-M12xP1.75 | - | - | - | - |
| OP-212 | - | 6 | 190 | 171.4 | PCDφ250 | 6-M12xP1.75 | - | - | - | - |
| OP-215 | 33 | 6 | 260 | 235 | - | - | PCDφ230 | 3-M12xP1.75 | PCDφ300 | 3-M12xP1.75 |
| OP-218 | 33 | 6 | 260 | 235 | PCDφ230 | 3-M12xP1.75 | PCDφ300 | 3-M12*P1.75 | PCDφ380 | 3-M12xP1.75 |
| OP-221 | 41 | 6 | 330.2 | 330.2 | PCDφ300 | 3-M16xP2.0 | PCDφ380 | 3-M16xP2.0 | PCDφ460 | 3-M16xP2.0 |
| OP-224 | 42 | 6 | 463.6 | 463.6 | PCDφ350 | 3-M16xP2.0 | PCDφ450 | 3-M16xP2.0 | PCDφ550 | 3-M16xP2.0 |
| 型號 | J | K | L | M | N max. | N min. | O max. | O min. | P max. | P min. | Q | R | S | T |
| OP-204 | 26 | 3-M10xP1.5 | - | 14 | 23 | 20.3 | 11.5 | 6.7 | 3.5 | -6.5 | 23 | 10 | 17.5 | 2 |
| OP-205 | 33 | 3-M10«P1.5 | 15 | 14 | 26.2 | 23.5 | 19 | 6 | 1 | -9 | 25 | 10 | 20 | 2 |
| OP-206 | 45 | 6-M10*P1.5 | 16 | 20 | 32.35 | 29.6 | 24 | 7 | 11 | -1 | 31 | 12 | 19 | 2 |
| OP-208 | 52 | 6-M12xP1.75 | 18 | 25 | 39.1 | 35.4 | 30 | 10 | 14.5 | -1.5 | 35 | 14 | 20.5 | 2 |
| OP-210 | 75 | 6-M16«P2.0 | 19 | 30 | 51.5 | 47.1 | 34 | 12 | 8.5 | -10.5 | 40 | 16 | 25 | 2 |
| OP-212 | 91 | 6-M16xP2.0 | 25 | 30 | 61.6 | 56.3 | 46 | 12 | 8 | -15 | 50 | 21 | 28 | 2 |
| OP-215 | 117.5 | 6-M20xP2.5 | 28 | 43 | 82.3 | 77 | 46 | 13 | 7.5 | -16 | 62 | 22 | 42.5 | 5 |
| OP-218 | 120 | 6-M20xP2.5 | 28 | 43 | 83.8 | 78.5 | 78 | 18 | 7.5 | -16 | 62 | 22 | 42.5 | 5 |
| OP-221 | 180 | 6-M24xP3.0 | 33 | 60 | 119.6 | 114.3 | 63.3 | 21.3 | 10.5 | -13 | 65 | 25 | 42.5 | 5 |
| OP-224 | 205 | 6-M24xP3.0 | 37 | 60 | 134.4 | 128.4 | 87.3 | 21.3 | 13.5 | -11 | 65 | 25 | 42.5 | 5 |
| 型號 | U | V | W | X | Y | 通孔直徑 | 柱塞行程 | 爪行程直徑 | 最高迴轉速 (min-1) |
| OP-204 | M32xP1.5 | 12 | 24 | 49.5 | - | 26mm | 10mm | 5.4mm | 8000 R.P.M |
| OP-205 | M40xP1.5 | 12 | 31.5 | 62 | - | 33mm | 10mm | 5.4mm | 7000 R.P.M |
| OP-206 | M55xP2 | 20 | 37 | 73 | - | 45mm | 12mm | 5.5mm | 6000 R.P.M |
| OP-208 | M60xP2 | 30 | 39 | 95 | 104.8 | 52mm | 16mm | 7.4mm | 5000 R.P.M |
| OP-210 | M85xP2 | 40 | 43 | 110 | 133.4 | 75mm | 19mm | 8.8mm | 4200 R.P.M |
| OP-212 | M100xP2 | 50 | 51 | 129 | - | 91mm | 23mm | 10.6mm | 3300 R.P.M |
| OP-215 | M130xP2 | 48 | 66 | 165 | 171.4 | 117.5mm | 23mm | 10.6mm | 2500 R.P.M |
| OP-218 | M130xP2 | 48 | 66 | 165 | 171.4 | 120mm | 23mm | 10.6mm | 2000 R.P.M |
| OP-221 | M195xP2 | 80 | 73.5 | 180 | 235 | 180mm | 23mm | 10.6mm | 1700 R.P.M |
| OP-224 | M220xP3 | 80 | 73.5 | 180 | 330.2 | 205mm | 26mm | 12mm | 1400 R.P.M |
| 型號 | 最大拉力 | 最大靜夾持力 | 最大設定油壓壓力 | 搭配油壓缸編號/型號 | 夾持範圍 | 重量 (kg) | |||
| OP-204 | 1428 kgf | 14 KN | 2850 kgf | 28 KN | 24 kgf/cm² | 2.3 Mpa | NO. 36041-10 P1036 | φ7~φ110 | 3.8 |
| OP-205 | 1730 kgf | 17 KN | 3570 kgf | 35 KN | 29 kgf/cm² | 2.8 Mpa | NO. 36041-10 P1036 | φ10-φ135 | 6.1 |
| OP-206 | 2140 kgf | 21 KN | 5710 kgf | 56 KN | 28 kgf/cm² | 2.7 Mpa | NO. 36041-12 P1246 | φ13~φ169 | 12.5 |
| OP-208 | 3360 kgf | 33 KN | 8360 kgf | 82 KN | 26 kgf/cm² | 2.5 Mpa | NO. 36041-15 P1552 | φ13~φ210 | 21.9 |
| OP-210 | 4280 kgf | 42 KN | 11010 kgf | 108 KN | 27 kgf/cm² | 2.6 Mpa | NO. 36041-18 P1875 | φ30~φ254 | 33.7 |
| OP-212 | 5500 kgf | 54 KN | 14380 kgf | 141 KN | 27 kgf/cm² | 2.6 Mpa | NO. 36041-20 P2091 | φ35~φ304 | 55.3 |
| OP-215 | 7140 kgf | 70 KN | 18250 kgf | 179 KN | 24.5 kgf/cm² | 2.4 Mpa | NO. 36041-25 P2511 | φ35~φ381 | 106.8 |
| OP-218 | 7140 kgf | 70 KN | 18250 kgf | 179 KN | 24.5 kgf/cm² | 2.4 Mpa | NO. 36041-25 P2511 | φ40~φ450 | 152 |
| OP-221 | 9080 kgf | 89 KN | 23760 kgf | 233 KN | 31.5 kgf/cm² | 3.0 Mpa | NO. 36041-28 P2816 | φ115~φ530 | 195.2 |
| OP-224 | 9080 kgf | 89 KN | 23760 kgf | 233 KN | 31.5 kgf/cm² | 3.0 Mpa | NO. 36041-28 P2816 | φ140~φ610 | 269.4 |
