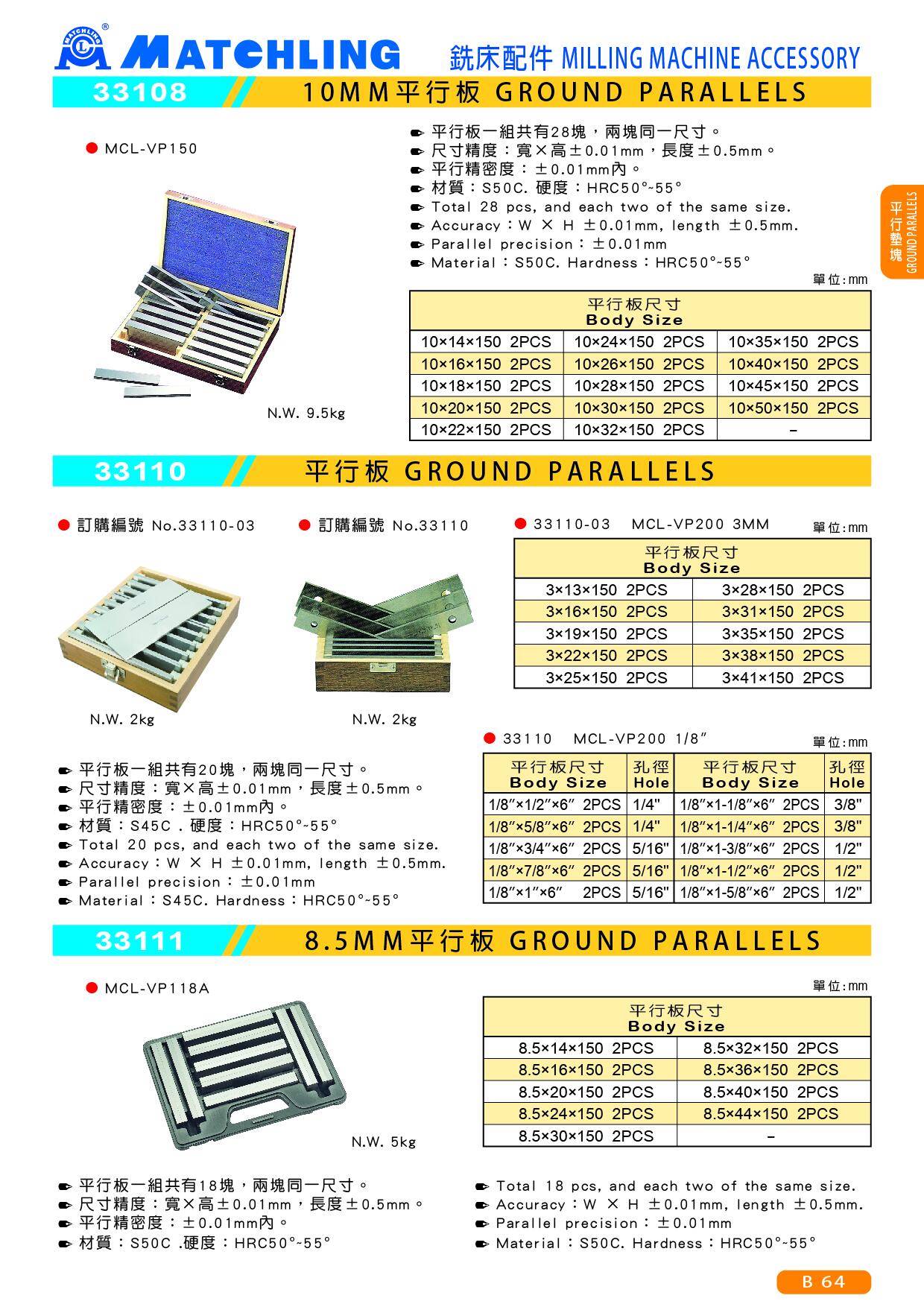

33110 平行板
● 平行板一組共有20塊，兩塊同一尺寸。
● 尺寸精度：寬×高±0.01mm，長度±0.5mm。
● 平行精密度：±0.01mm內。
● 材質：S45C . 硬度：HRC50°~55°
● 重量 N.W.：3kg
●訂購編號 33110-03 MCL-VP200 3MM 單位：mm
| 尺寸 | |
| 3mm*13mm*150mm 2pcs | 3mm*28mm*150mm 2pcs |
| 3mm*16mm*150mm 2pcs | 3mm*31mm*150mm 2pcs |
| 3mm*19mm*150mm 2pcs | 3mm*35mm*150mm 2pcs |
| 3mm*22mm*150mm 2pcs | 3mm*38mm*150mm 2pcs |
| 3mm*25mm*150mm 2pcs | 3mm*41mm*150mm 2pcs |
●訂購編號 33110 MCL-VP200 1/8" 單位：mm
| 尺寸 | 孔徑 | 尺寸 | 孔徑 |
| 1/8"*1/2"*6" 2pcs | 1/4" | 1/8"*1/2"*6" 2pcs | 3/8" |
| 1/8"*1/2"*6" 2pcs | 1/4" | 1/8"*1/2"*6" 2pcs | 3/8" |
| 1/8"*1/2"*6" 2pcs | 5/16" | 1/8"*1/2"*6" 2pcs | 1/2" |
| 1/8"*1/2"*6" 2pcs | 5/16" | 1/8"*1/2"*6" 2pcs | 1/2" |
| 1/8"*1/2"*6" 2pcs | 5/16" | 1/8"*1/2"*6" 2pcs | 1/2" |
