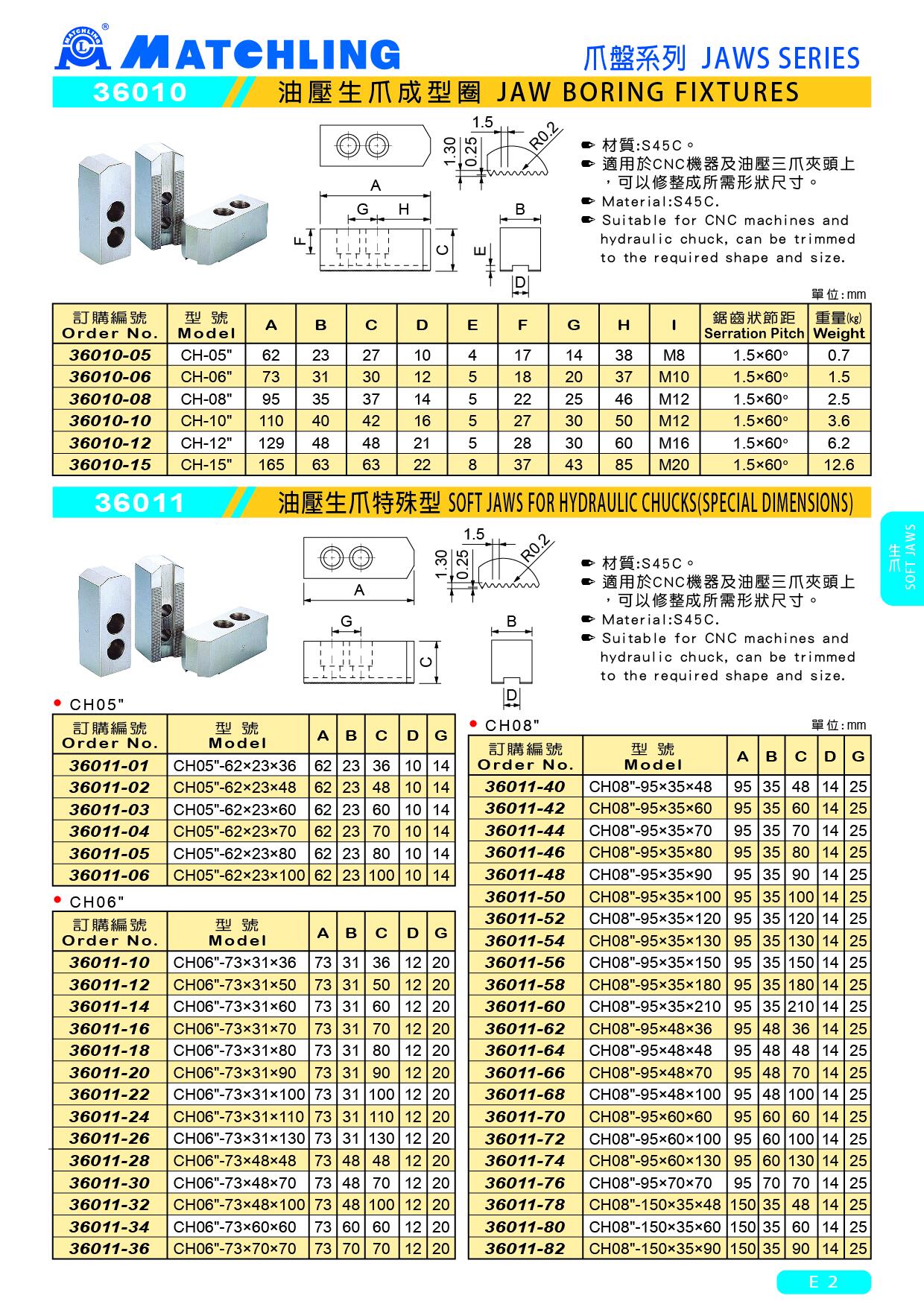

36010 油壓生爪 (標準型／特殊型)
● 材質:S45C。
● 適用於CNC機器及油壓三爪夾頭上，可以修整成所需形狀尺寸。
單位：mm
| 訂購編號 | 型號 | A | B | C | D | E | F | G | H | I | 鋸齒狀節距 | 重量 (kg) |
| 36010-05 | CH-05" | 62 | 23 | 27 | 10 | 4 | 17 | 14 | 38 | M8 | 1.5x60° | 0.7 |
| 36010-06 | CH-06" | 73 | 31 | 30 | 12 | 5 | 18 | 20 | 37 | M10 | 1.5x60° | 1.5 |
| 36010-08 | CH-08" | 95 | 35 | 37 | 14 | 5 | 22 | 25 | 46 | M12 | 1.5x60° | 2.5 |
| 36010-10 | CH-10" | 110 | 40 | 42 | 16 | 5 | 27 | 30 | 50 | M12 | 1.5x60° | 3.6 |
| 36010-12 | CH-12" | 129 | 48 | 48 | 21 | 5 | 28 | 30 | 60 | M16 | 1.5x60° | 6.2 |
| 36010-15 | CH-15" | 165 | 63 | 63 | 22 | 8 | 37 | 43 | 85 | M20 | 1.5x60° | 12.6 |
• CH05"
| 訂購編號 | 型號 | A | B | C | D | G |
| 36011-01 | CH05"-62x23x36 | 62 | 23 | 36 | 10 | 14 |
| 36011-02 | CH05"-62x23x48 | 62 | 23 | 48 | 10 | 14 |
| 36011-03 | CH05"-62x23x60 | 62 | 23 | 60 | 10 | 14 |
| 36011-04 | CH05"-62x23x70 | 62 | 23 | 70 | 10 | 14 |
| 36011-05 | CH05"-62x23x80 | 62 | 23 | 80 | 10 | 14 |
| 36011-06 | CH05"-62x23x100 | 62 | 23 | 100 | 10 | 14 |
• CH06"
| 訂購編號 | 型號 | A | B | C | D | G |
| 36011-10 | CH06"-73x31x36 | 73 | 31 | 36 | 12 | 20 |
| 36011-12 | CH06"-73x31x50 | 73 | 31 | 50 | 12 | 20 |
| 36011-14 | CH06"-73x31x60 | 73 | 31 | 60 | 12 | 20 |
| 36011-16 | CH06"-73x31x70 | 73 | 31 | 70 | 12 | 20 |
| 36011-18 | CH06"-73x31x80 | 73 | 31 | 80 | 12 | 20 |
| 36011-20 | CH06"-73x31x90 | 73 | 31 | 90 | 12 | 20 |
| 36011-22 | CH06"-73x3 x100 | 73 | 31 | 100 | 12 | 20 |
| 36011-24 | CH06"-73x31x110 | 73 | 31 | 110 | 12 | 20 |
| 36011-26 | CH06"-73x31x130 | 73 | 31 | 130 | 12 | 20 |
| 36011-28 | CH06"-73x48x48 | 73 | 48 | 48 | 12 | 20 |
| 36011-30 | CH06"-73x48x70 | 73 | 48 | 70 | 12 | 20 |
| 36011-32 | CH06"-73x48x100 | 73 | 48 | 100 | 12 | 20 |
| 36011-34 | CH06"-73x60x60 | 73 | 60 | 60 | 12 | 20 |
| 36011-36 | CH06"-73x70x70 | 73 | 70 | 70 | 12 | 20 |
• CH08" 單位：mm
| 訂購編號 | 型號 | A | B | C | D | G |
| 36011-40 | CH08"-95x35x48 | 95 | 35 | 48 | 14 | 25 |
| 36011-42 | CH08"-95x35x60 | 95 | 35 | 60 | 14 | 25 |
| 36011-44 | CH08"-95x35x70 | 95 | 35 | 70 | 14 | 25 |
| 36014-46 | CH08"-95x35x80 | 95 | 35 | 80 | 14 | 25 |
| 36011-48 | CH08"-95x35x90 | 95 | 35 | 90 | 14 | 25 |
| 36011-50 | CH08"-95x35x100 | 95 | 35 | 100 | 14 | 25 |
| 36011-52 | CH08"-95x35x120 | 95 | 35 | 120 | 14 | 25 |
| 36011-54 | CH08"-95x35x130 | 95 | 35 | 130 | 14 | 25 |
| 36011-56 | CH08"-95x35x150 | 95 | 35 | 150 | 14 | 25 |
| 36011-58 | CH08"-95x35x180 | 95 | 35 | 180 | 14 | 25 |
| 36011-60 | CH08"-95x35x210 | 95 | 35 | 210 | 14 | 25 |
| 36011-62 | CH08"-95x48x36 | 95 | 48 | 36 | 14 | 25 |
| 36011-64 | CH08"-95x48x48 | 95 | 48 | 48 | 14 | 25 |
| 36011-66 | CH08"-95x48x70 | 95 | 48 | 70 | 14 | 25 |
| 36011-68 | CH08"-95x48x100 | 95 | 48 | 100 | 14 | 25 |
| 36011-70 | CH08"-95x60x60 | 95 | 60 | 60 | 14 | 25 |
| 36011-72 | CH08"-95x60x100 | 95 | 60 | 100 | 14 | 25 |
| 36011-74 | CH08"-95x60x130 | 95 | 60 | 130 | 14 | 25 |
| 36011-76 | CH08"-95x70x70 | 95 | 70 | 70 | 14 | 25 |
| 36011-78 | CH08"-150x35x48 | 150 | 35 | 48 | 14 | 25 |
| 36011-80 | CH08"-150x35x60 | 150 | 35 | 60 | 14 | 25 |
| 36011-82 | CH08"-150x35*90 | 150 | 35 | 90 | 14 | 25 |
• CH10"
| 訂購編號 | 型號 | A | B | C | D | G |
| 36012-01 | CH10"-110x40x50 | 110 | 40 | 50 | 16 | 30 |
| 36012-02 | CH10"-110x40x60 | 110 | 40 | 60 | 16 | 30 |
| 36012-03 | CH10"-110x40x70 | 110 | 40 | 70 | 16 | 30 |
| 36012-04 | CH10"-110x40x80 | 110 | 40 | 80 | 16 | 30 |
| 36012-05 | CH10"-110x40x90 | 110 | 40 | 90 | 16 | 30 |
| 36012-06 | CH10"-110x40x100 | 110 | 40 | 100 | 16 | 30 |
| 36012-07 | CH10"-110x40x120 | 110 | 40 | 120 | 16 | 30 |
| 36012-08 | CH10"-110x40x130 | 110 | 40 | 130 | 16 | 30 |
| 36012-09 | CH10"-110x40x150 | 110 | 40 | 150 | 16 | 30 |
| 36012-10 | CH10"-110x40x180 | 110 | 40 | 180 | 16 | 30 |
| 36012-11 | CH10"-110*40x200 | 110 | 40 | 200 | 16 | 30 |
| 36012-12 | CH10" -110x40x220 | 110 | 40 | 220 | 16 | 30 |
| 36012-13 | CH10"-110x40x250 | 110 | 40 | 250 | 16 | 30 |
| 36012-14 | CH10"-110x48x70 | 110 | 48 | 70 | 16 | 30 |
| 36012-15 | CH10"-110x60x42 | 110 | 60 | 42 | 16 | 30 |
| 36012-16 | CH10"-110*60*60 | 110 | 60 | 60 | 16 | 30 |
| 36012-17 | CH10"-110x70x48 | 110 | 70 | 48 | 16 | 30 |
| 36012-18 | CH10"-110x70x70 | 110 | 70 | 70 | 16 | 30 |
| 36012-19 | CH10"-150x40x48 | 150 | 40 | 48 | 16 | 30 |
| 36012-20 | CH10"-150*40x60 | 150 | 40 | 60 | 16 | 30 |
| 36012-21 | CH10"-150x40x90 | 150 | 40 | 90 | 16 | 30 |
| 36012-22 | CH10" 80x40x90 | 180 | 40 | 90 | 16 | 30 |
| 36012-23 | CH10"-210x40x90 | 210 | 40 | 90 | 16 | 30 |
• CH12" 單位：mm
| 訂購編號 | 型號 | A | B | C | D | G |
| 36012-30 | CH12"-129x48x60 | 129 | 48 | 60 | 21 | 30 |
| 36012-32 | CH12"-129x48x80 | 129 | 48 | 80 | 21 | 30 |
| 36012-34 | CH12" 129x48x100 | 129 | 48 | 100 | 21 | 30 |
| 36012-36 | CH12"-129x48x120 | 129 | 48 | 120 | 21 | 30 |
| 36012-39 | CH12"-129x48x150 | 129 | 48 | 150 | 21 | 30 |
| 36012-42 | CH12"-129x48x180 | 129 | 48 | 180 | 21 | 30 |
| 36012-43 | CH12" 129x48x200 | 129 | 48 | 200 | 21 | 30 |
| 36012-44 | CH12"-129x48x220 | 129 | 48 | 220 | 21 | 30 |
| 36042-45 | CH12" 129x48x250 | 129 | 48 | 250 | 21 | 30 |
| 36012-46 | CH12"-170x48x48 | 170 | 48 | 48 | 21 | 30 |
| 36012-47 | CH12" 170x48x60 | 470 | 48 | 60 | 21 | 30 |
| 36012-48 | CH12"-170x48x80 | 170 | 48 | 80 | 21 | 30 |
| 36012-50 | CH12"-200x48x60 | 200 | 48 | 60 | 21 | 30 |
| 36012-52 | CH12"-220x48x48 | 220 | 48 | 48 | 21 | 30 |
• CH15"(18")
| 訂購編號 | 型號 | A | B | C | D | G |
| 36012-60 | CH15"-165x63x80 | 165 | 63 | 80 | 22 | 43 |
| 36012-61 | CH15"-165x63x100 | 165 | 63 | 100 | 22 | 43 |
| 36012-62 | CH15"-165x63x130 | 165 | 63 | 130 | 22 | 43 |
| 36012-63 | CH15"-165x63x150 | 165 | 63 | 150 | 22 | 43 |
| 36012-64 | CH15"-165x63x180 | 165 | 63 | 180 | 22 | 43 |
| 36012-65 | CH15"-210x63x72 | 210 | 63 | 72 | 22 | 43 |
| 36012-66 | CH15"-250x63x72 | 250 | 63 | 72 | 22 | 43 |
