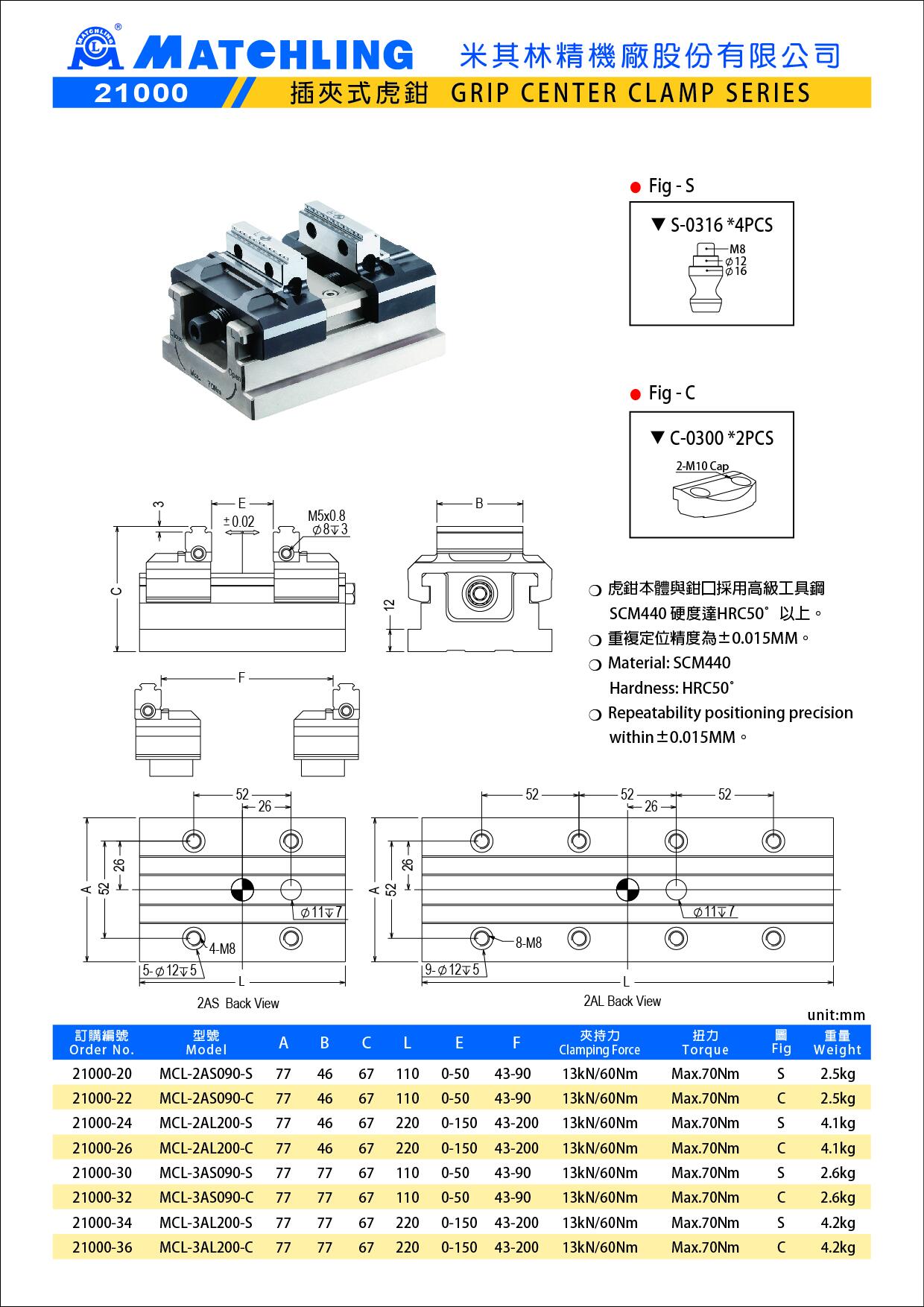

21000 插夾式虎鉗 (2" 3")
► 虎鉗本體與鉗口採用高級工具鋼 SCM440 硬度達HRC50°以上。
► 重複定位精度為±0.015MM。
| Order NO. | Model | A | B | C | L | E | F | Force | Vise Accembly | Fig | weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 21000-20 | MCL-2AS090-S | 77 | 46 | 67 | 110 | 0-50 | 43-90 | 13kN/60Nm | Max.70Nm | S | 2.5 |
| 21000-22 | MCL-2AS090-C | 77 | 46 | 67 | 110 | 0-50 | 43-90 | 13kN/60Nm | Max.70Nm | C | 2.5 |
| 21000-24 | MCL-2AL200-S | 77 | 46 | 67 | 220 | 0-150 | 43-200 | 13kN/60Nm | Max.70Nm | S | 4.1 |
| 21000-26 | MCL-2AL200-C | 77 | 46 | 67 | 220 | 0-150 | 43-200 | 13kN/60Nm | Max.70Nm | C | 4.1 |
| 21000-30 | MCL-3AS090-S | 77 | 77 | 67 | 110 | 0-50 | 43-90 | 13kN/60Nm | Max.70Nm | S | 2.6 |
| 21000-32 | MCL-3AS090-C | 77 | 77 | 67 | 110 | 0-50 | 43-90 | 13kN/60Nm | Max.70Nm | C | 2.6 |
| 21000-34 | MCL-3AL200-S | 77 | 77 | 67 | 220 | 0-150 | 43-200 | 13kN/60Nm | Max.70Nm | S | 4.2 |
| 21000-36 | MCL-3AL200-C | 77 | 77 | 67 | 220 | 0-150 | 43-200 | 13kN/60Nm | Max.70Nm | C | 4.2 |
單位 : mm
