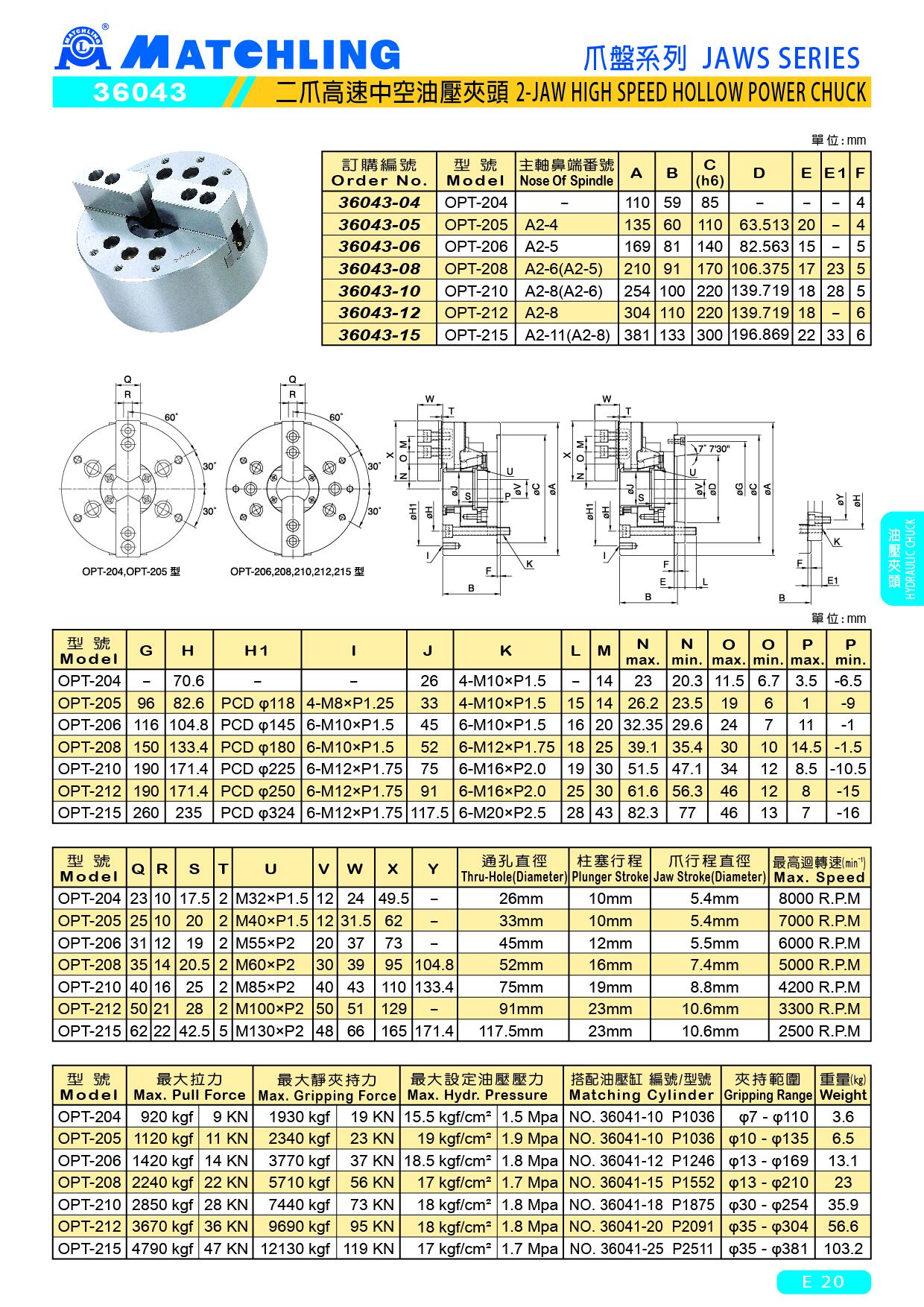

36043 二爪高速中空油壓夾頭
單位：mm
| 訂購編號 | 型號 | 主軸鼻端番號 | A | B | C (h6) | D | E | E1 | F |
| 36043-04 | OPT-204 | - | 110 | 59 | 85 | - | - | - | 4 |
| 36043-05 | OPT-205 | A2-4 | 135 | 60 | 110 | 63.513 | 20 | - | 4 |
| 36043-06 | OPT-206 | A2-5 | 169 | 81 | 140 | 82.563 | 15 | - | 5 |
| 36043-08 | OPT-208 | A2-6(A2-5) | 210 | 91 | 170 | 106.375 | 17 | 23 | 5 |
| 36043-10 | OPT-210 | A2-8(A2-6) | 254 | 100 | 220 | 139.719 | 18 | 28 | 5 |
| 36043-12 | OPT-212 | A2-8 | 304 | 110 | 220 | 139.719 | 18 | - | 6 |
| 36043-15 | OPT-215 | A2-11(A2-8) | 381 | 133 | 300 | 196.869 | 22 | 33 | 6 |
單位：mm
| 型號 | G | H | H1 | 1 | J | K | L | M | N max. | N min. | O max. | O min. | P max. | P min. |
| OPT-204 | - | 70.6 | - | - | 26 | 4-M10xP1.5 | - | 14 | 23 | 20.3 | 11.5 | 6.7 | 3.5 | -6.5 |
| OPT-205 | 96 | 82.6 | PCD φ118 | 4-M8xP1.25 | 33 | 4-M10xP1.5 | 15 | 14 | 26.2 | 23.5 | 19 | 6 | 1 | -9 |
| OPT-206 | 116 | 104.8 | PCD φ145 | 6-M10xP1.5 | 45 | 6-M10xP1.5 | 16 | 20 | 32.35 | 29.6 | 24 | 7 | 11 | -1 |
| OPT-208 | 150 | 133.4 | PCDφ180 | 6-M10xP1.5 | 52 | 6-M12xP1.75 | 18 | 25 | 39.1 | 35.4 | 30 | 10 | 14.5 | -1.5 |
| OPT-210 | 190 | 174.4 | PCDφ225 | 6-M12xP1.75 | 75 | 6-M16xP2.0 | 19 | 30 | 51.5 | 47.1 | 34 | 12 | 8.5 | -10.5 |
| OPT-212 | 190 | 171.4 | PCDφ250 | 6-M12xP1.75 | 91 | 6-M16xP2.0 | 25 | 30 | 61.6 | 56.3 | 46 | 12 | 8 | -15 |
| OPT-215 | 260 | 235 | PCD φ324 | 6-M12xP1.75 | 117.5 | 6-M20xP2.5 | 28 | 43 | 82.3 | 77 | 46 | 13 | 7 | -16 |
| 型號 | Q | R | S | T | U | V | W | X | Y | 通孔直徑 | 柱塞行程 | 爪行程直徑 | 最高迴轉速 (min-1) |
| OPT-204 | 23 | 10 | 17.5 | 2 | M32xP1.5 | 12 | 24 | 49.5 | - | 26mm | 10mm | 5.4mm | 8000 R.P.M |
| OPT-205 | 25 | 10 | 20 | 2 | M40xP1.5 | 12 | 31.5 | 62 | - | 33mm | 10mm | 5.4mm | 7000 R.P.M |
| OPT-206 | 31 | 12 | 19 | 2 | M55xP2 | 20 | 37 | 73 | - | 45mm | 12mm | 5.5mm | 6000 R.P.M |
| OPT-208 | 35 | 14 | 20.5 | 2 | M60xP2 | 30 | 39 | 95 | 104.8 | 52mm | 16mm | 7.4mm | 5000 R.P.M |
| OPT-210 | 40 | 16 | 25 | 2 | M85xP2 | 40 | 43 | 110 | 133.4 | 75mm | 19mm | 8.8mm | 4200 R.P.M |
| OPT-212 | 50 | 21 | 28 | 2 | M100xP2 | 50 | 51 | 129 | - | 91mm | 23mm | 10.6mm | 3300 R.P.M |
| OPT-215 | 62 | 22 | 42.5 | 5 | M130xP2 | 48 | 66 | 165 | 171.4 | 117.5mm | 23mm | 10.6mm | 2500 R.P.M |
| 型號 | 最大拉力 | 最大靜夾持力 | 最大設定油壓座力 | 搭配油壓缸編號/型號 | 夾持範圍 | 重量 (kg) | |||
| OPT-204 | 920 kgf | 9 KN | 1930 kgf | 19 KN | 15.5 kgf/cm² | 1.5 Mpa | NO. 36041-10 P1036 | φ7 - φ110 | 3.6 |
| OPT-205 | 1120 kgf | 11 KN | 2340 kgf | 23 KN | 19 kgf/cm² | 1.9 Mpa | NO. 36041-10 P1036 | φ10 - φ135 | 6.5 |
| OPT-206 | 1420 kgf | 14 KN | 3770 kgf | 37 KN | 18.5 kgf/cm² | 1.8 Mpa | NO. 36041-12 P1246 | φ13 - φ169 | 13.1 |
| OPT-208 | 2240 kgf | 22 KN | 5710 kgf | 56 KN | 17 kgf/cm² | 1.7 Mpa | NO. 36041-15 P1552 | φ13 - φ210 | 23 |
| OPT-210 | 2850 kgf | 28 KN | 7440 kgf | 73 KN | 18 kgf/cm² | 1.8 Mpa | NO. 36041-18 P1875 | φ30 - φ254 | 35.9 |
| OPT-212 | 3670 kgf | 36 KN | 9690 kgf | 95 KN | 18 kgf/cm² | 1.8 Mpa | NO. 36041-20 P2091 | φ35 -φ304 | 56.6 |
| OPT-215 | 4790 kgf | 47 KN | 12130 kgf | 119 KN | 18 kgf/cm² | 1.8 Mpa | NO. 36041-25 P2511 | φ35 - φ381 | 103.2 |
