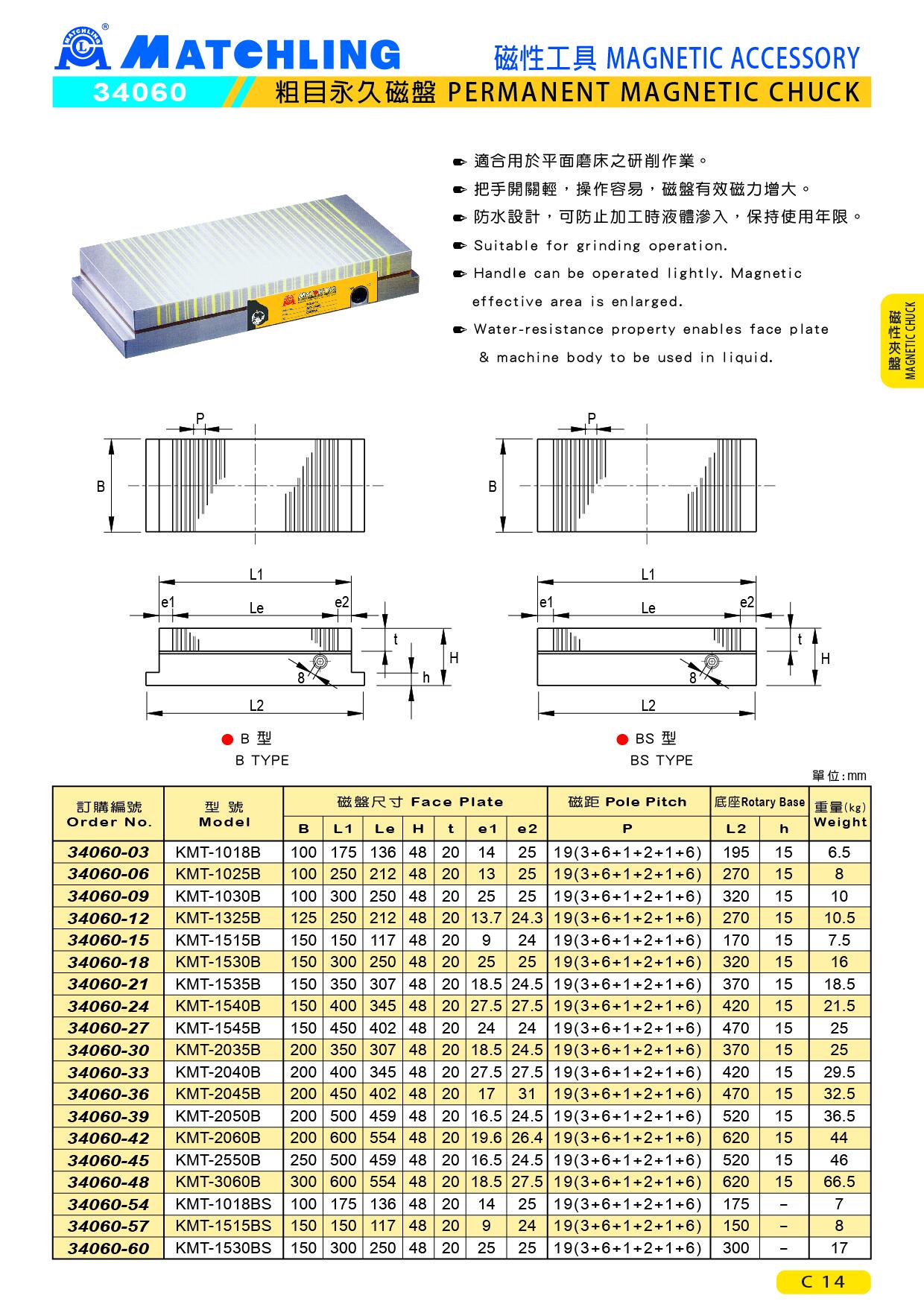

34060 粗目永久磁盤
● 適合用於平面磨床之研削作業。
● 把手開關輕，操作容易，磁盤有效磁力增大。
● 防水設計，可防止加工時液體滲入，保持使用年限。
單位：mm

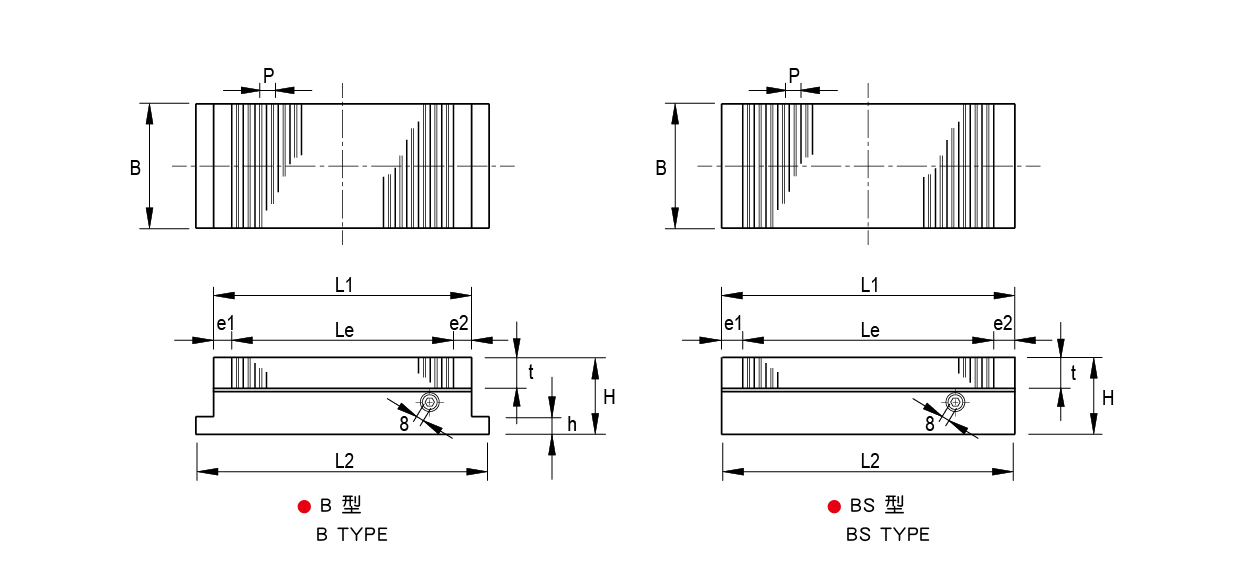

| 訂購編號 | 型號 | 磁盤尺寸 | 磁距 | 底座 | 重量 (kg) | |||||||
| B | L1 | Le | H | t | e1 | e2 | P | L2 | h | |||
| 34060-03 | KMT-1018B | 100 | 175 | 136 | 48 | 20 | 14 | 25 | 19(3 + 6 + 1+2 + 1+6) | 195 | 15 | 6.5 |
| 34060-06 | KMT-1025B | 100 | 250 | 212 | 48 | 20 | 13 | 25 | 19(3 + 6 + 1+2 + 1+6) | 270 | 15 | 8 |
| 34060-09 | KMT-1030B | 100 | 300 | 250 | 48 | 20 | 25 | 25 | 19(3 + 6 + 1+2 + 1+6) | 320 | 15 | 10 |
| 34060-12 | KMT-1325B | 125 | 250 | 212 | 48 | 20 | 13.7 | 24.3 | 19(3 + 6 + 1+2 + 1+6) | 270 | 15 | 10.5 |
| 34060-15 | KMT-1515B | 150 | 150 | 117 | 48 | 20 | 9 | 24 | 19(3 + 6 + 1+2 + 1+6) | 170 | 15 | 7.5 |
| 34060-18 | KMT-1530B | 150 | 300 | 250 | 48 | 20 | 25 | 25 | 19(3 + 6 + 1+2 + 1+6) | 320 | 15 | 16 |
| 34060-21 | KMT-1535B | 150 | 350 | 307 | 48 | 20 | 18.5 | 24.5 | 19(3 + 6 + 1+2 + 1+6) | 370 | 15 | 18.5 |
| 34060-24 | KMT-1540B | 150 | 400 | 345 | 48 | 20 | 27.5 | 27.5 | 19(3 + 6 + 1+2 + 1+6) | 420 | 15 | 21.5 |
| 34060-27 | KMT-1545B | 150 | 450 | 402 | 48 | 20 | 24 | 24 | 19(3 + 6 + 1+2 + 1+6) | 470 | 15 | 25 |
| 34060-30 | KMT-2035B | 200 | 350 | 307 | 48 | 20 | 18.5 | 24.5 | 19(3 + 6 + 1+2 + 1+6) | 370 | 15 | 25 |
| 34060-33 | KMT-2040B | 200 | 400 | 345 | 48 | 20 | 27.5 | 27.5 | 19(3 + 6 + 1+2 + 1+6) | 420 | 15 | 29.5 |
| 34060-36 | KMT-2045B | 200 | 450 | 402 | 48 | 20 | 17 | 31 | 19(3 + 6 + 1+2 + 1+6) | 470 | 15 | 32.5 |
| 34060-39 | KMT-2050B | 200 | 500 | 459 | 48 | 20 | 16.5 | 24.5 | 19(3 + 6 + 1+2 + 1+6) | 520 | 15 | 36.5 |
| 34060-42 | KMT-2060B | 200 | 600 | 554 | 48 | 20 | 19.6 | 26.4 | 19(3 + 6 + 1+2 + 1+6) | 620 | 15 | 44 |
| 34060-45 | KMT-2550B | 250 | 500 | 459 | 48 | 20 | 16.5 | 24.5 | 19(3 + 6 + 1+2 + 1+6) | 520 | 15 | 46 |
| 34060-48 | KMT-3060B | 300 | 600 | 554 | 48 | 20 | 18.5 | 27.5 | 19(3 + 6 + 1+2 + 1+6) | 620 | 15 | 66.5 |
| 34060-54 | KMT-1018BS | 100 | 175 | 136 | 48 | 20 | 14 | 25 | 19(3 + 6 + 1+2 + 1+6) | 175 | - | 7 |
| 34060-57 | KMT-1515BS | 150 | 150 | 117 | 48 | 20 | 9 | 24 | 19(3 + 6 + 1+2 + 1+6) | 150 | - | 8 |
| 34060-60 | KMT-1530BS | 150 | 300 | 250 | 48 | 20 | 25 | 25 | 19(3 + 6 + 1+2 + 1+6) | 300 | - | 17 |
