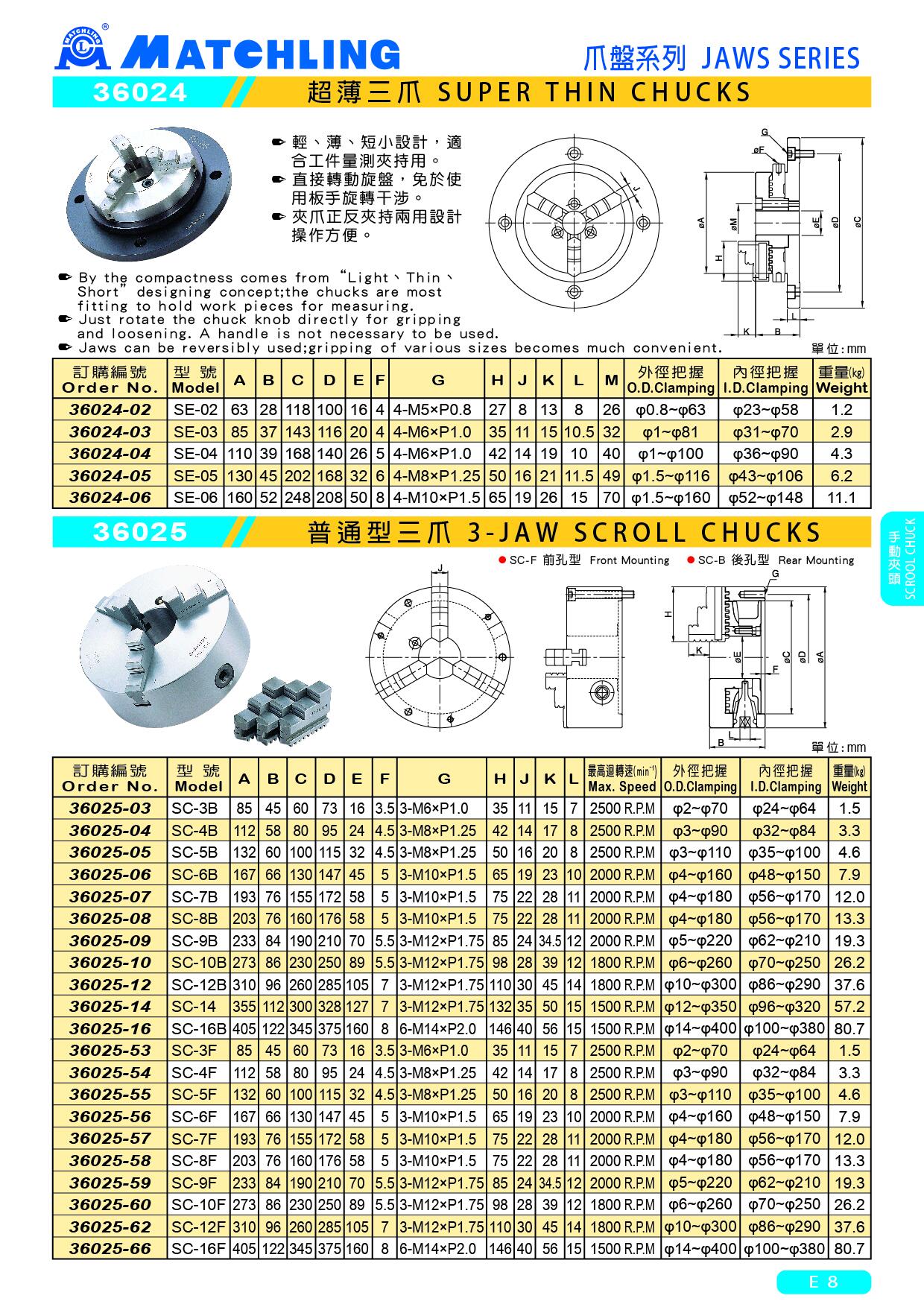

36025 普通型三爪
單位：mm
| 訂購編號 | 型號 | A | B | C | D | E | F | G | H | J | K | L | 最高迴轉速 (min-1) | 外徑把握 | 內徑把握 | 重量 (kg) |
| 36025-03 | SC-3B | 85 | 45 | 60 | 73 | 16 | 3.5 | 3-M6xP1.0 | 35 | 11 | 15 | 7 | 2500 R.P.M | φ2~φ70 | φ24~φ64 | 1.5 |
| 36025-04 | SC-4 | 112 | 58 | 80 | 95 | 24 | 4.5 | 3-M8xP1.25 | 42 | 14 | 17 | 8 | 2500 R.P.M | φ3~φ90 | φ32~φ84 | 3.3 |
| 36025-05 | SC-5 | 132 | 60 | 100 | 115 | 32 | 4.5 | 3-M8xP1.25 | 50 | 16 | 20 | 8 | 2500 R.RM | φ3~φ110 | φ35~φ100 | 4.6 |
| 36025-06 | SC-6 | 167 | 66 | 130 | 147 | 45 | 5 | 3-M10xP1.5 | 65 | 19 | 23 | 10 | 2000 R.P.M | φ4~φ160 | φ48~φ150 | 7.9 |
| 36025-07 | SC-7 | 193 | 76 | 155 | 172 | 58 | 5 | 3-M10xP1.5 | 75 | 22 | 28 | 11 | 2000 R.P.M | φ4~φ180 | φ56~φ170 | 12 |
| 36025-08 | SC-8 | 203 | 76 | 160 | 176 | 58 | 5 | 3-M10xP1.5 | 75 | 22 | 28 | 11 | 2000 R.P.M | φ4-φ180 | φ56-φ170 | 13.3 |
| 36025-09 | SC-9 | 233 | 84 | 190 | 210 | 70 | 5.5 | 3-M12xP1.75 | 85 | 24 | 34.5 | 12 | 2000 R.P.M | φ5~φ220 | φ62~φ210 | 19.3 |
| 36025-10 | SC-10 | 273 | 86 | 230 | 250 | 89 | 5.5 | 3-M12xP1.75 | 98 | 28 | 39 | 12 | 1800 R.P.M | φ6~φ260 | φ70~φ250 | 26.2 |
| 36025-12 | SC-12 | 310 | 96 | 260 | 285 | 105 | 7 | 3-M12xP1.75 | 110 | 30 | 45 | 14 | 1800 R.P.M | φ10φ300 | φ86~φ290 | 37.6 |
| 36025-14 | SC-14 | 355 | 112 | 300 | 328 | 127 | 7 | 3-M12xP1.75 | 132 | 35 | 50 | 15 | 1500 R.P.M | φ12~φ350 | φ96~φ320 | 57.2 |
| 36025-16 | SC-16 | 405 | 122 | 345 | 375 | 160 | 8 | 6-M14xP2.0 | 146 | 40 | 56 | 15 | 1500 R.P.M | φ14~φ400 | φ100~φ380 | 80.7 |
| 36025-53 | SC-3F | 85 | 45 | 60 | 73 | 16 | 3.5 | 3-M6xP1.0 | 35 | 11 | 15 | 7 | 2500 R.P.M | φ2~φ70 | φ24~φ64 | 1.5 |
